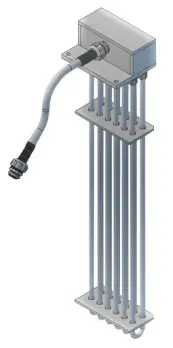

Over the Side Immersion Heater 6PT-28-4-480

(6PT-28-4-480)
4kW; 6-tubes over the side immersion heater; tank depth min (A dim) = 28in; PTFE coated; 480V-3ph
Features
  • 5 Watts per square inch (WSI)
  • All welded junction box for harsh environment
  • Liquid Level Control recommended
  • Power control by SCR recommended
  • Visual indicator for min solution level
Specifications
  • Volts/Phase (V - ph): 480V-3ph
  • Heater Type: Over the side Immersion
  • Sheath (material): PTFE
  • Heater length (Dim B): 28in
  • Power (Watts): 4000
  • Power Range (kW): 3.1 to 5.0
