Metallic heating elements (wire wound, rod over bend) can be used up to 2400 degF (1315 degC), some SiC heating elements can be used up to 3000 degF (1650 degC) and MolyD heating elements can be used up to 3360 degF (1850 degC. Graphite heating elements (in Argon) can be used up to 3000 degC. Besides the maximum temperature, the atmosphere in the furnace is a controlling factor to select heating elements.
For electrically heated systems we use metallic, Silicon Carbide (SiC), Molybdenum Disilicide (MoSiO2 or MolyD) or graphite heating elements.
For electrically heated systems we use metallic, Silicon Carbide (SiC), Molybdenum Disilicide (MoSiO2 or MolyD) or graphite heating elements.
Cartridge Heater
Formed tubular heater

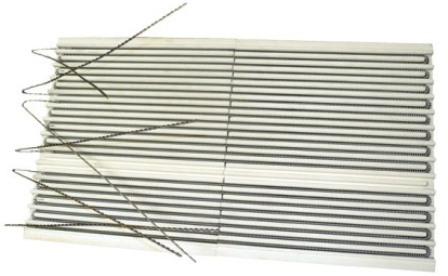

Wire element in plate

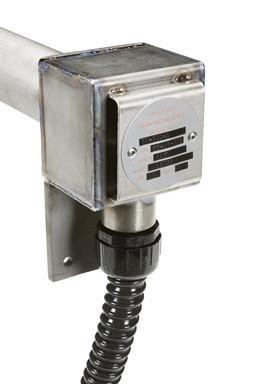

Purged welded heater with junction box

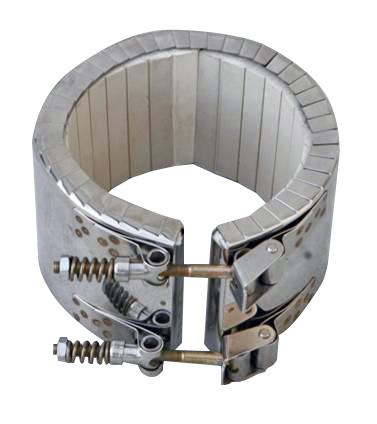

Ceramic band heater with insulation

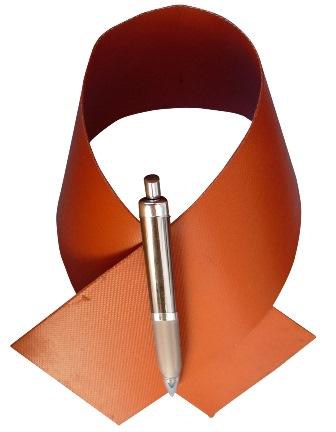

Silicone rubber heater.jpg

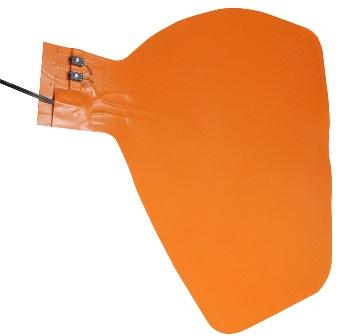

Silicon Rubber Heater with thermocouples and plugs

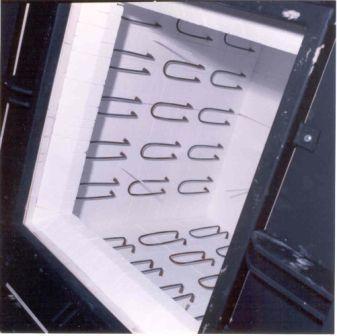

Silicone carbide heating elements in bottom loading furnace
Wire wound heating elements

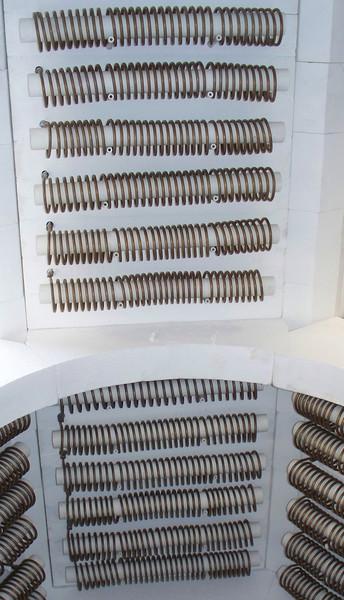

Wire wound heating elements on ceramic tubes

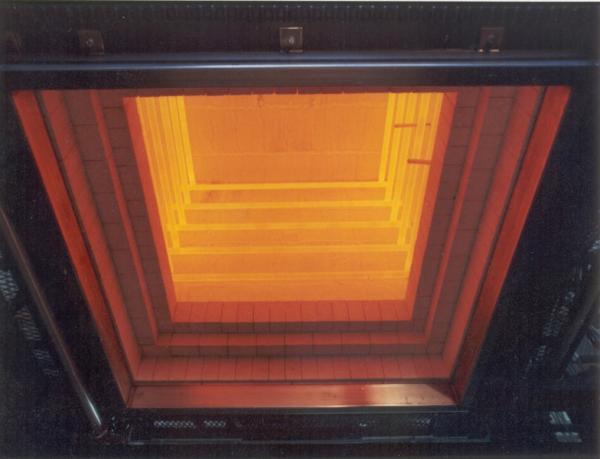

MoSiO2 Heating chamber with 3 zones

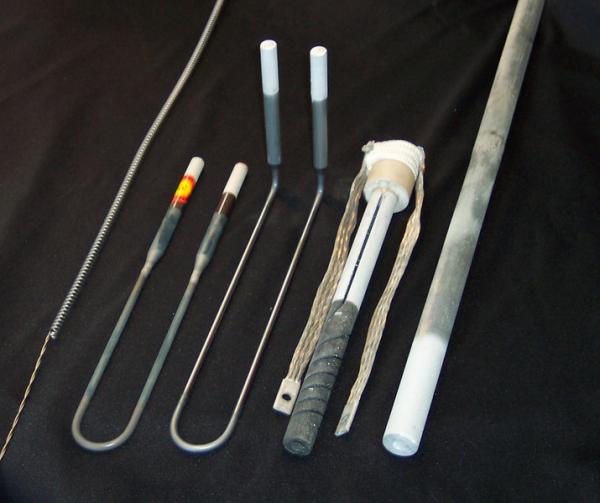

Heating elements for high temperature furnaces
